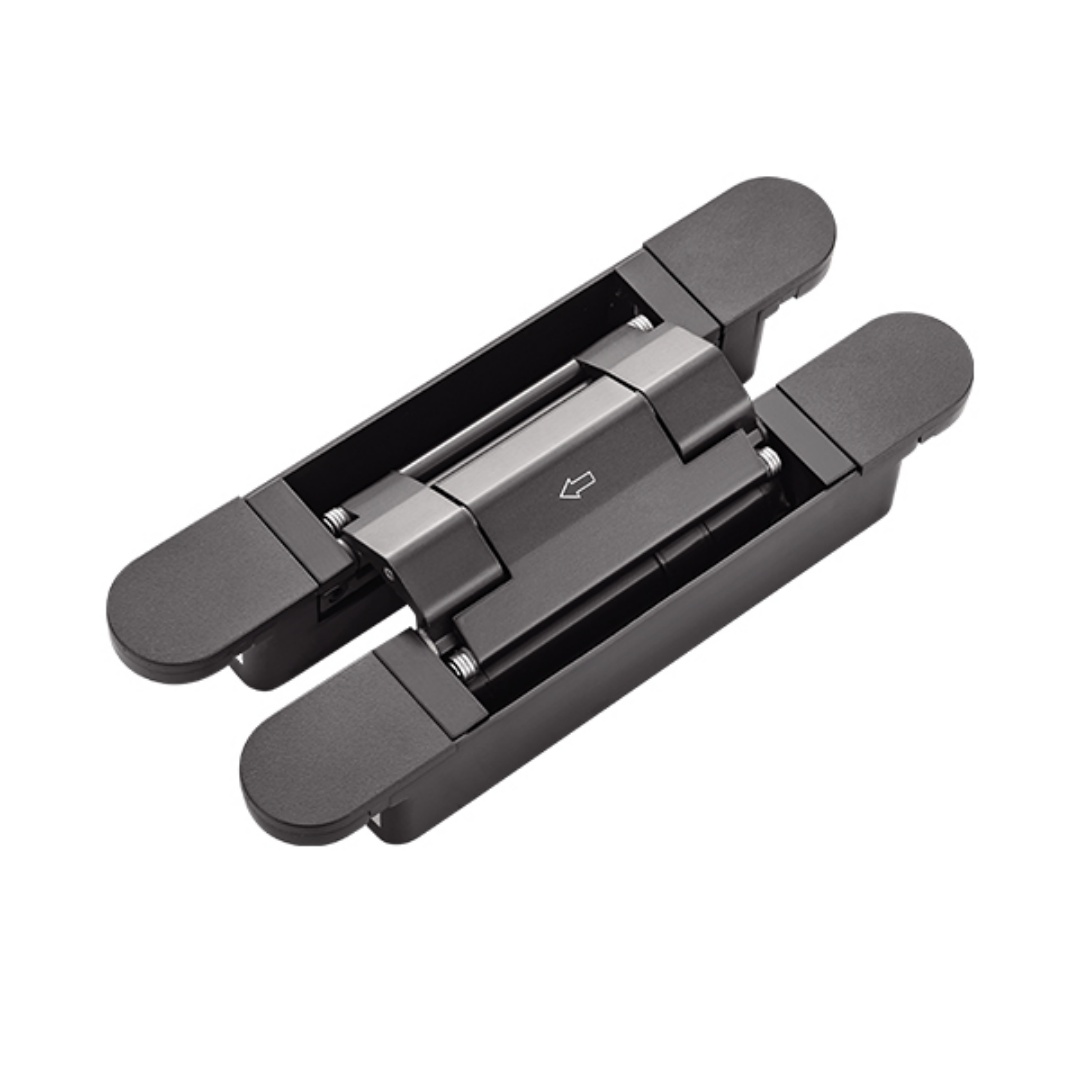

YS type hydraulic hinge
YS type hydraulic hinge
Short Description:
Model NO: YS Hydraulic hinge
Material： Zinc Alloy
Finish： Matt Black / Matt Gold / Satin Black Nickel / Silver
Product Details Display
Brand: IISDOO
Material: Zinc alloy
Application: Wooden door
Opening degree: 180
Max bearing: 70KG/PAIR
Door thickness: More than 29mm
Width of door: less than 900mm
Height of door: less than 2300mm
Adjustment:
Up & Down:±3mm
Left & Right:+2mm
Inward & Outward: +1mm
Used for wooden doors and invisible doors.
Determine the number of hinges according to the weight and size of the door.
|
Door Weight |
Dimensions |
Number of hinges used |
|
≤40kg |
＜2100mm×700mm |
One hydraulic hinge ＋One load bearing |
|
≤70kg |
＜2300mm×900mm |
Two hydraulic hinges |
|
≤105kg |
＜3000mm×1050mm |
Three hydraulic hinges |
Product Advantages
Product Finish
Silver
Satin Black Nickel
Matt Gold
Matt Black
